──[ 0. The TEE ]──
The TEE (Trusted Execution Environment) is a secure area inside the main
processor that:
- Runs its own OS (a "secure OS")
- Is fully isolated from the "normal" Android system (the REE, or Rich
Execution Environment)
- Is only reachable by trusted applications, or by trusted drivers
──[ 1. The Issue & Enclaves ]──
The TEE was born from one question: how do you protect data in an inherently
hostile environment?
The answer was a new building block: the **enclave**.
ENCLAVE: a secure area inside your device that isolates sensitive
data. A protected environment where only authorized code can touch
the data, with protection against outside observation.
Only a process running inside an enclave can read the data stored
in that same enclave.
Enclaves are everywhere now:
Windows VBS (Virtualization-Based Security)
Intel SGX (Software Guard Extensions)
Mac SEP (Secure Enclave Processor)
Android TEE (via ARM TrustZone)
──[ 2. ARM TrustZone ]──
On ARM chips, which run the vast majority of phones, the relevant tech is called
TrustZone.
Idea: split the processor in two parallel worlds. An enclave mechanism baked
into the silicon, and that's where our TEE lives.
──[ 3. TEE vs REE ]──
So we get two worlds living side by side:
Normal World (REE) — Rich Execution Environment
- Android OS
- Apps (Instagram, TikTok, ...)
- Games
Secure World (TEE) — Trusted Execution Environment
- Signed code only
- Cryptographic key management
- Biometrics (face / fingerprint)
- DRM (content protection)

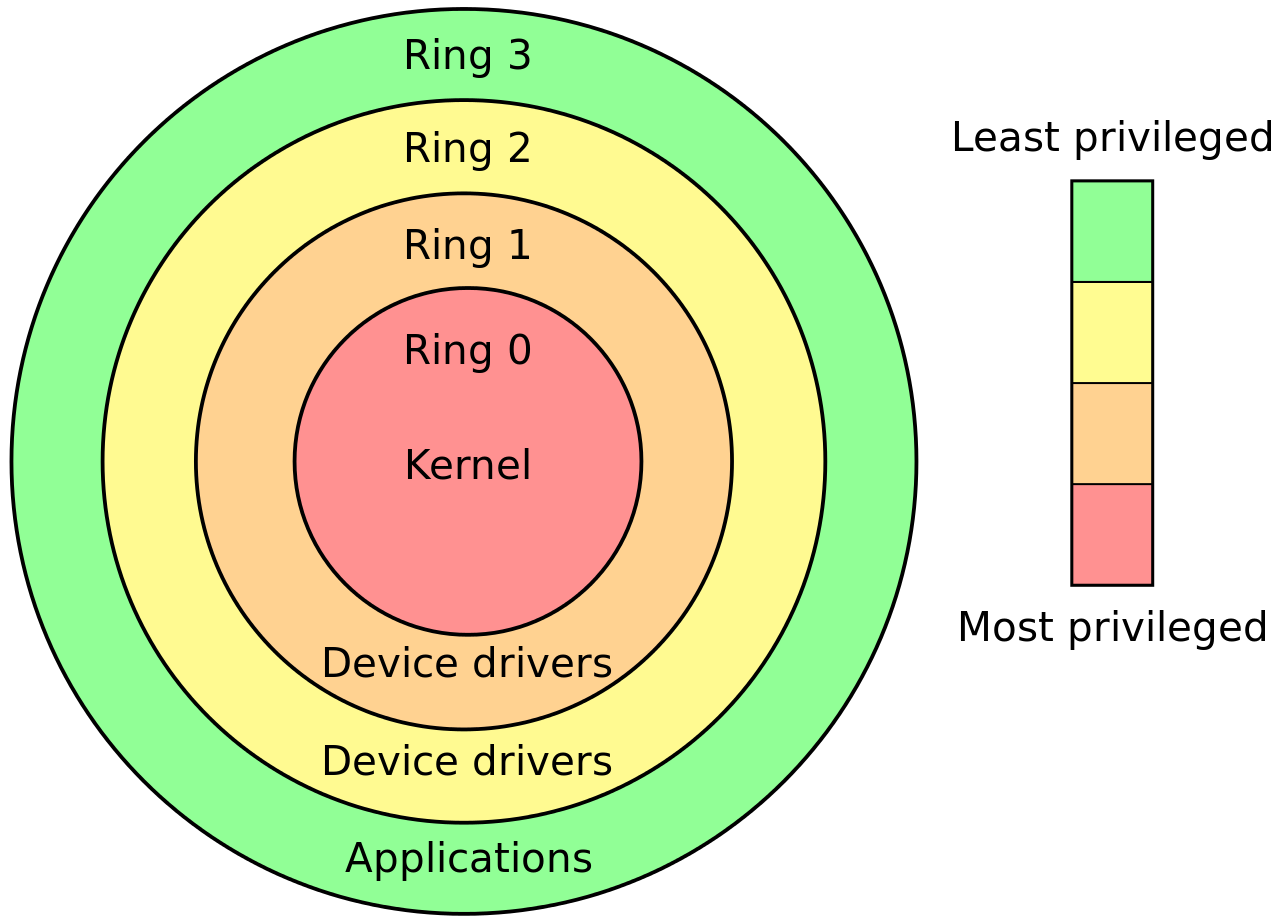

The EL0 / EL1 / EL3 zones in the diagram map cleanly to a more familiar Linux
idea: protection rings.
──[ 4. The SMC ]──

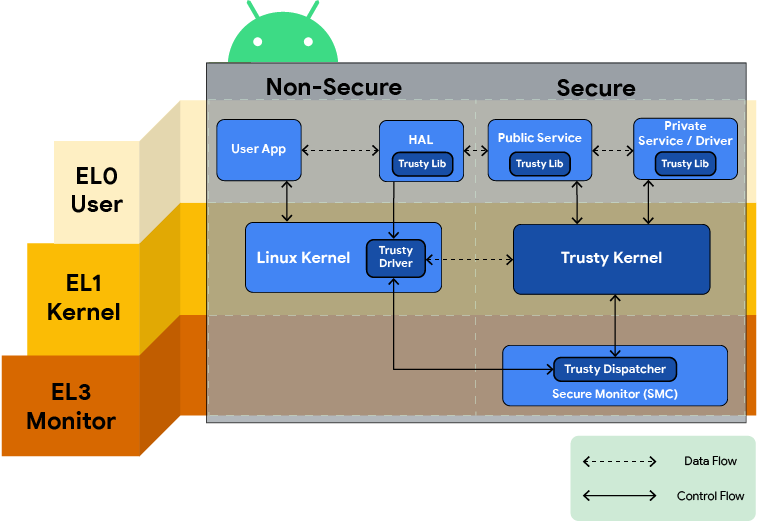

Key takeaway from that diagram: every instruction that wants to reach the TEE
has to go through one specific doorway, the SMC (Secure Monitor Call).
A typical request for a crypto key looks like:
──[ 5. The NS-bit ]──
The NS-bit (Non-Secure bit) is the security badge stamped on every operation the
processor does. It's the fundamental mechanism that keeps the two worlds
logically separate.
When the processor runs an op, the NS-bit propagates through the whole system:
- On the system bus: every transaction (AXI/ACE) carries this bit.
When the CPU reads an address, the request includes the NS-bit
telling the system which world it came from.
- In memory controllers: they read the NS-bit to decide if access is
allowed. A memory region can be configured to accept only NS=0
accesses (Secure World only).
NS-bit:
NS = 0 -> "Secure World" (TEE)
NS = 1 -> "Normal World" (REE)
The current world is governed by the NS bit of the SCR (Secure Configuration
Register) — a special register only reachable from Monitor mode (EL3).
TL;DR:
NS = 0 -> "I'm in the Secure World" (TEE)
NS = 1 -> "I'm in the Normal World" (REE)
Lives in SCR.NS (Secure Configuration Register).
──[ 6. The Chain of Trust ]──
Android uses Verified Boot: at each step of boot, a signature validates the next
stage. A cascade of identity checks.
Rule: a component is only "trusted" once the previous one has
authenticated it.
──[ 7. Trusted OS ]──
The TEE isn't just a chunk of protected memory — it's a real OS running in
parallel with Android.
Each vendor ships its own:
Google Trusty (TOS)
Qualcomm QSEE
Samsung TEEGRIS
...
This Trusty kernel can load Trusted Applications like:
Keymaster cryptographic key management
Gatekeeper PIN / pattern / password verification
DRM protected-content handling
──[ 8. TEE vs Secure Element ]──
Worth telling the Secure Element and the TEE apart. They're complementary, not
the same thing:
Secure Element (SE)
- Dedicated hardware: a physically isolated microcontroller
- Tiny resources: a few KB of RAM/ROM
- Use: key storage, ...
+ Total physical isolation
- Very limited power/size
TEE
- Logical isolation: separated by the NS-bit
- Shared resources: access to the main CPU/GPU
- Use: heavy crypto, biometrics, HD video
+ High compute power
- Shares the physical hardware
──[ 9. Case Study: Netflix ]──
Concrete example: Netflix.
Secure video decoding
When you watch an HD/4K movie on Netflix, the video is decoded directly inside
the TEE. Why?
- Stop the video stream from being copied
- Respect copyright
- Comply with studio licensing
If the app finds your phone has no working TEE, quality gets capped — you won't
get past ~480p.
How the key stays safe: each Netflix title has its own AES key
provided by Widevine. That key:
- sits in the TEE and never leaves it
- decrypts content inside the TEE
- feeds the decrypted stream out through a verified driver
Revisiting our earlier diagram with this flow:
